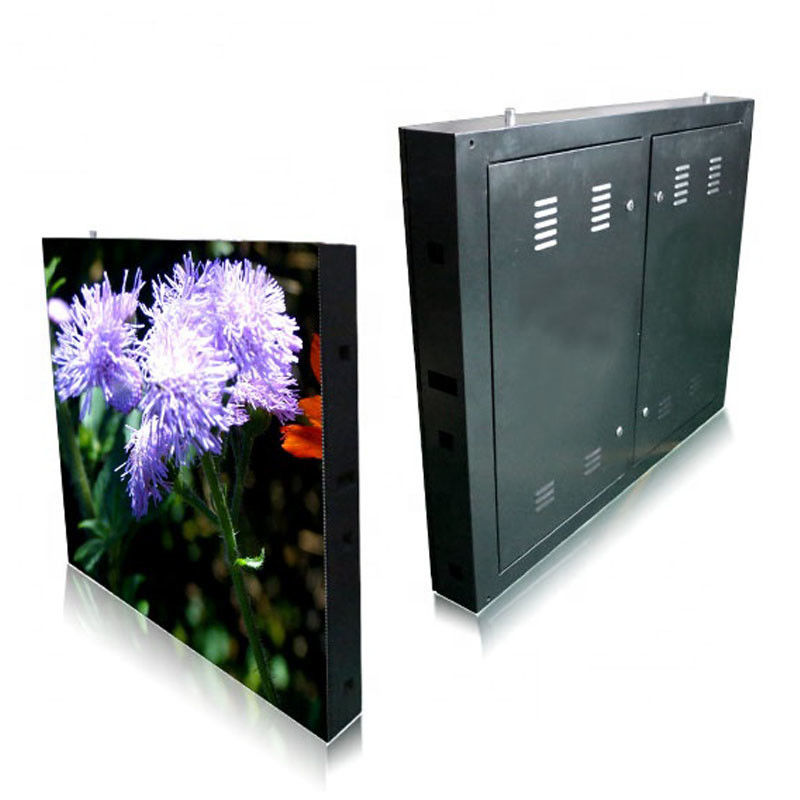

Outdoor LED Video Wall P5RGB Fixed LED Screen
تفاصيل المنتج:
| Place of Origin: | CHINA |
| اسم العلامة التجارية: | DL |
| إصدار الشهادات: | CE/Rohs/PSE |
| Model Number: | P5RGB |
شروط الدفع والشحن:
| Minimum Order Quantity: | 1PC |
|---|---|
| الأسعار: | USD800-1000/㎡ |
| Packaging Details: | Wooden box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100square meters/month |
|
معلومات تفصيلية |
منتوج وصف
Outdoor Fixed LED Display - Back door service
-
Pixel pitch: 5 mm
-
Cabinet dimension: 960×960×150 mm
-
Pixel configuration: SMD2727
-
Brightness (cd/㎡): 4500-6500cd/m²
-
Refresh rate: 1920Hz
-
Metal waterproof cabinet
-
Back door maintenance
Parameter:
ITEM P5 Series Pixel Pitch(㎜) 5mm Pixel Density(pixel/㎡) 40,000 pixels/m² Pixel Type 1Red,1Green, 1Blue LED Type SMD2727 Module Size 320mm (W) * 320mm (H) * 17mm (D) Module Number 3 (W) x 6 (H) Cabinet Size 960mm (W) x 960mm(H) x 150mm (D) Pixels Per Cabinet 192 x 192 dots Cabinet Weight 25kg Meterial Epoxy Paint Coated Metal Environment Outdoor Ingress Protection IP54 Viewing Angle 140° Horizontal / 140° Vertical Colour Temperture 2000 - 9300K Adjustable Colour 4.4 Trillion Brightness 5000 - 5500 cd/m² Contrast Ratio 7300:1 Power Consumption (Max) 1000W/m² Power Consumption (Avg) 400W/m² Driving Method Constant Current Drive Video Frame Rate 50/60Hz Refresh Rate 1920Hz Input Voltage 100~240VAC Operating Temperature/Humidity -20℃~+50℃/10~90%RH Storage Temperature/Humidity -30℃~+60℃/10~95%RH Maintenance Rear MTBF ＞10,000h LED Life Span ＞100,000h Recommended Viewing Distance > 5m
